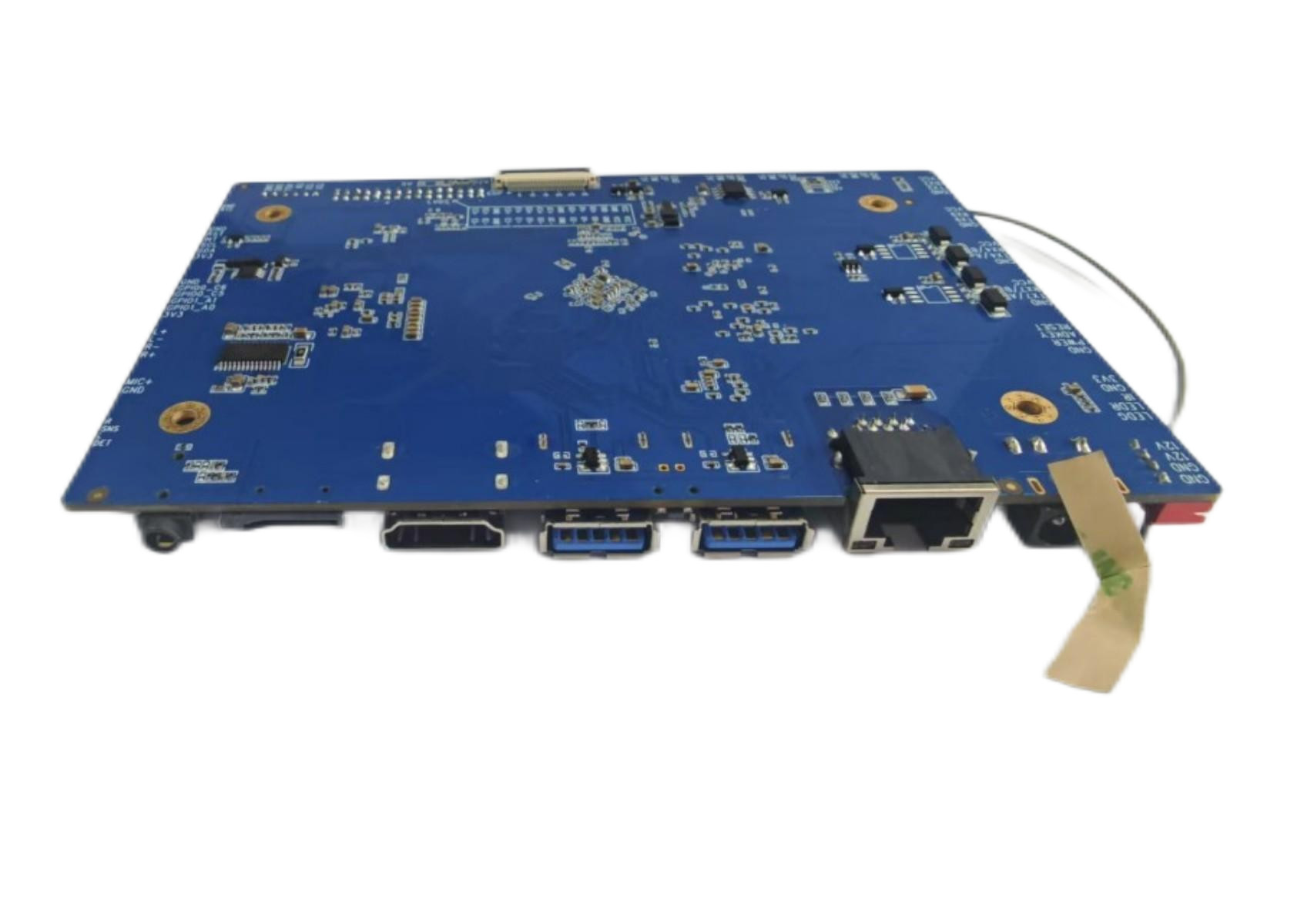

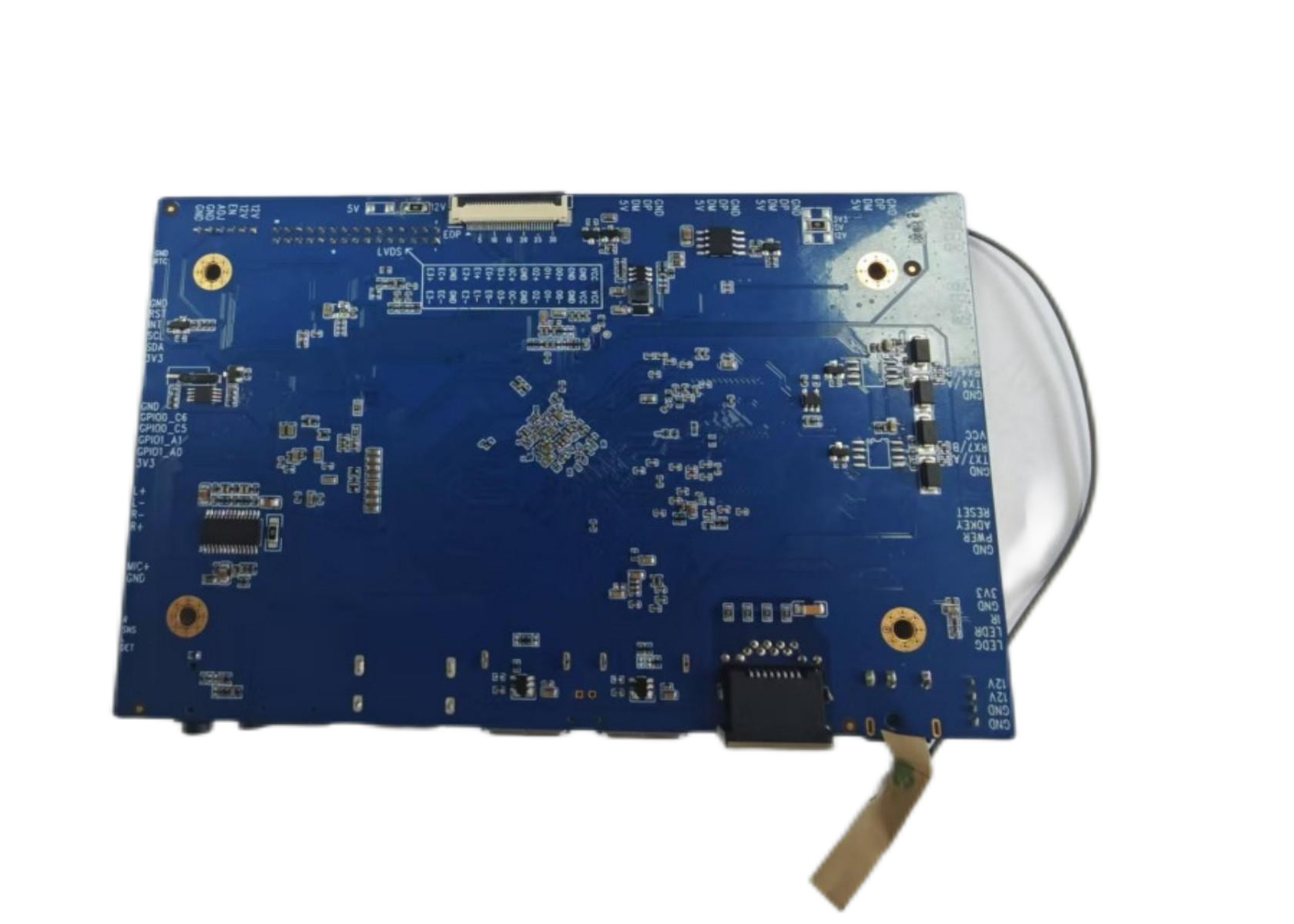

Rockchip RK3566 Embedded System Motherboard ARM G52 2EE Digital Signage Board
This embedded system motherboard focuses on multiple adaptability and stable performance, accurately meeting the needs of multiple fields such as the Internet of Things, industrial control, and intelligent terminals. With rich audio and video interfaces and flexible touch solutions, it has become the preferred core component for embedded device development. Its hardware configuration has been finely optimized, providing sufficient functional expansion space for terminal products while ensuring operational stability.
The video output capability fully covers mainstream display interfaces and resolution requirements. The LVDS interface adopts a dual 8 signal transmission mode, supporting 1920 * 1080 full HD display, with smooth and delicate image output, and can be adapted to devices with high display accuracy requirements such as self-service terminals. The EDP interface supports a high-definition resolution of 2560 * 1440, providing clear and realistic visual effects for smart all-in-one devices with high-speed transmission characteristics. Simultaneously compatible with MIPI Format video output, it perfectly matches various small and medium-sized display modules, meeting the display needs of portable devices such as smart wearables and handheld terminals.
This motherboard supports stereo audio output. A multi touch capacitive touch screen that supports both I2C and USB interfaces, allowing for flexible adaptation according to the structural design and functional requirements of different terminal products. Its touch response is sensitive, positioning is accurate, and it can effectively improve the convenience of device operation, adapting to various touch interaction devices such as self-service query machines, industrial control screens, and intelligent cockpits.
Technical Specifications
CPU: RK3568 Quad-core 2.0GHz
GPU: Mali-G52
NPU: 1 TOPS
OS: Android 11/Linux/Ubuntu/Debian
Memory: DDR4 2GB/4GB/8GB
EMMC: 16GB/32GB/64GB/128GB
Key Features
- Support for LVDS, MIPI, EDP, and HDMI display interfaces with I2C touch panel
- Rich connectivity options: USB 2.0, USB 3.0, COM ports, Mini PCIE interface
- Network interfaces: Gigabit Ethernet, Wireless WiFi 2.4G & 5G, Bluetooth
- Strong anti-electromagnetic interference and electromagnetic compatibility
- Compatible with major POS application software from mainstream manufacturers

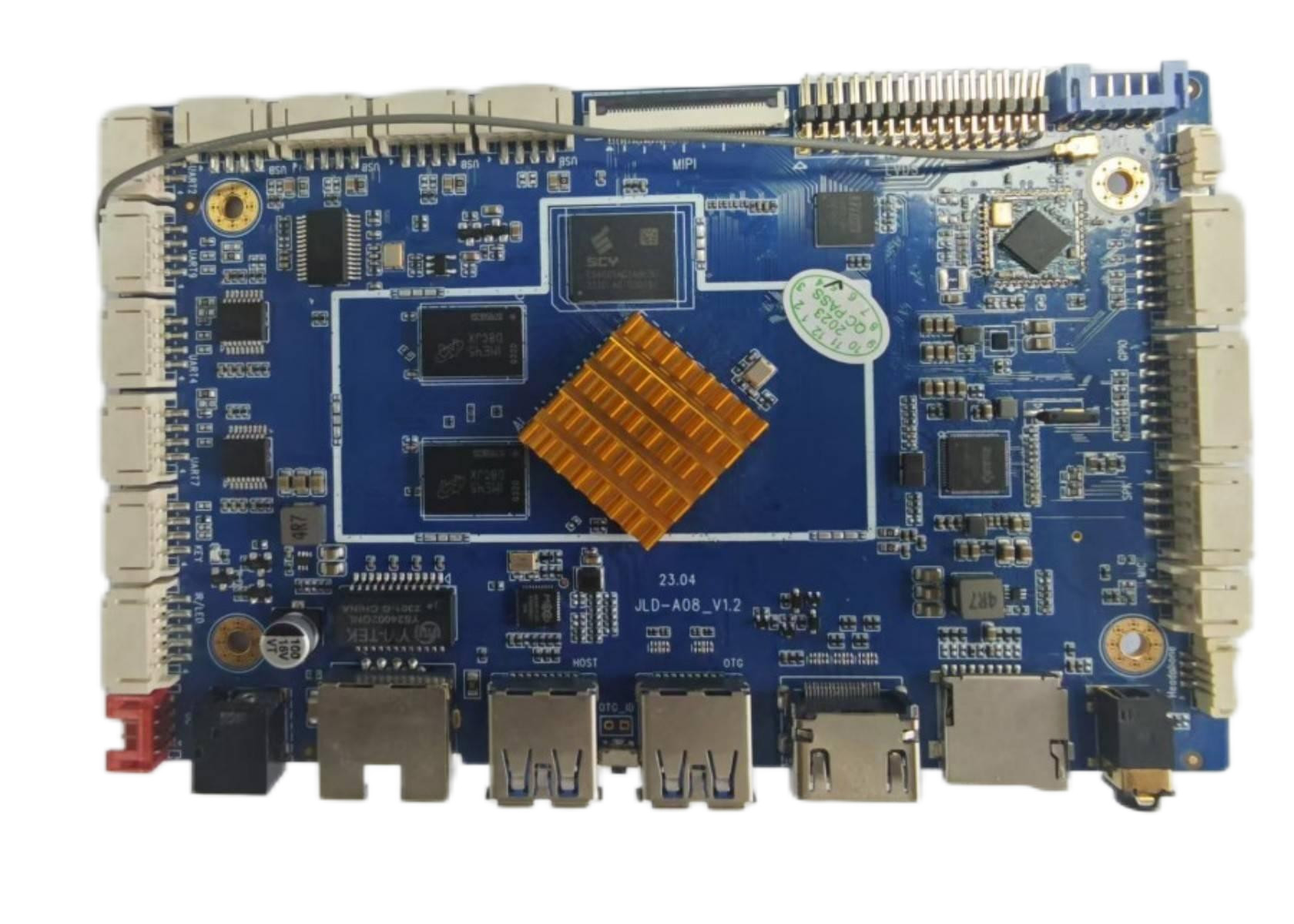

Product Interface
Detailed Parameters
| Parameter |
Specification |
| Processor |
RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz |
| GPU |
ARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| NPU |
1TOPS |
| Memory |
2G/4G/8G DDR4 optional |
| EMMC |
16G-128G optional |
| Display |
Support LVDS, EDP, MIPI, HDMI |
| Audio Output |
Stereo, support Dolby sound effect |
| Ethernet |
10/100/1000M |
| Wi-Fi |
2.4G/5G WiFi BT |
| OS |
Android 11/Ubuntu 20.04/Debian 10 |
| PCB Size |
146mm*102mm*1.6mm |
| Power Supply |
DC12V-24V input |
| Temperature Range |
-20° to 80℃ |
Applications
Self-service terminals, vending machines, queue systems, and more. Product advantages include stable performance and rich interface options.
Packing Options
- Customized according to buyer's requirements
- Inner vacuum packaging
- Outer standard export carton
Frequently Asked Questions
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample orders to test and check quality with your equipment. Customized development PCBA are also available.
Q2. What about the lead time?
A: Samples require 3-5 days, mass production time requires 1-2 weeks for orders with quantity.
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We typically ship via DHL, UPS, FedEx or TNT, arriving in 3-5 days. Airline and sea shipping are also available.
Q5. How to proceed an order for PCBA motherboard?
A: First, share your requirements or application. Second, we provide a quote based on your needs or our suggestions. Third, customer confirms samples and places deposit. Fourth, we arrange production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before production and confirm the design based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty for our products.
Any inquiry, please leave message to us!
